HGM125 ultra fine grinding mill, ultra fine powder grinder is a kind of representative machine, and it is the new type industrial ultra fine grinding equipment specializing in producing fine and superfine powder of non-inflammable, non-explosive and brittle materials with Mohs hardness under seven, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite,etc.
Share to:
Send Inquiry
Product Introduction

HGM125 ultra fine mill, ultra fine powder grinder is a kind of representative machine and it is the new type ultra fine grinding equipment specializing in producing fine and superfine powder of non-inflammable, non-explosive and brittle materials with Mohs’ hardness under seven, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rock phosphate, kalium ore, pumice, etc., totally more than 100 kinds of materials.
materials

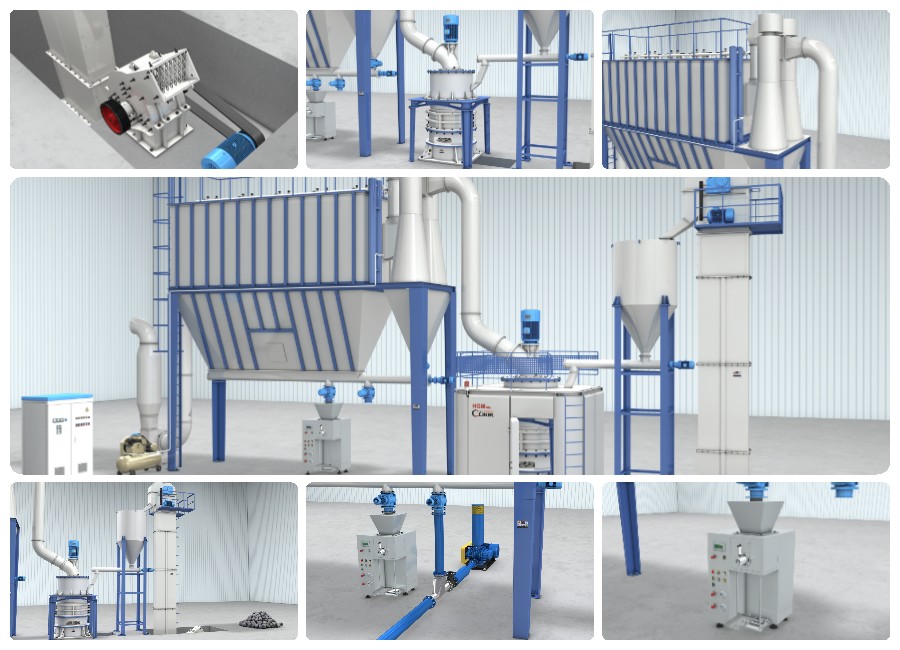

HGM125 ultra fine grinding mill, ultra fine grinder mainly consists of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.

HGM ultrafine grinding mill


Working principle of HGM125 ultra fine grinding mill, ultrafine powder grinder:


After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, edge of then evenly sent to the upper distribution plate of the turnplate by vibrating feeder and sloping feeding pipe.

When the ultra fine grinding mill is at work, all the grinding rollers are rolling in the ring, and the materials are driven to the edge of the turnplate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers.

The high-pressure air blower constantly inhales air within the ultrafine powder grindr and, in turn, the air flow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector.

Most of the qualified powders will fall an exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags.

At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve. The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed. In addition, filtered clean air will be emitted from the air outlet of muffler in the end.

grinding mill working principle


Features of HGM125 ultra fine grinding mill, ultrafine powder grinder:


1. High efficiency
Under the same finished final size and the same motor power, the capacity of ultrafine powder grinder mill machine is twice as much as jet mill, mixing grinder and ball mill.

2. Long life cycle of spare parts
The ring and roller are forged by special material with high utilization. Under the same grinding material and finish special size, the lifecycle of spare parts is about one year, which is 2-3times longer than impact mill or turbo mill. Furthermore, the lifetime can reach 2-5 years for grinding calcite carbonate.

3. High safety and reliability
As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.

4. High fineness and flexible adjustment
The final fineness of the grinding materials can be adjusted between 325 meshes and 3000 meshes, and the product fineness can reach D97≤5um.

5. Environment-friendly
The application of pulse deduster and muffler greatly alleviates dust pollution and noise.




Model and technical data of HGM125 ultra fine grinding mill, ultrafine powder grinder:

Parameters of HGM series ultrafine mill
Model HGM80 HGM80A HGM90L HGM100L-Ⅱ HGM100P HGM125L HGM1680L
Ring Diameter(mm) 800 800 900 1000 1000 1250 1680
Ring Number (PCS) 3 3 4 4 4 4 4
Input Size (mm) ≤10 ≤10 ≤10 ≤15 ≤15 ≤20 ≤20
Adjustable range of finished product (mesh) 150-3000 150-3000 150-3000 150-3000 150-3000 150-3000 150-3000
Capacity (t/h) 0.5-5.5 0.5-5.5 0.8-6.5 1.2-10 1.2-11 2.5-20 5-45
Outlet Size L*W*H (mm) 8605*4139*6050 10454*3393*6626 11735*3952*7525 14507*3633*7562 14362*4200*7562 19261*4406*8591 25067*5414*9007
Main motor power (kw) 75 75 55*2 132/75*2 132/75*2 185 315

Note: This specification is just referencing, any changes are subject to the products.
