Brand: Clirik
Model: HGM
Condition: New
Spare Parts Supply: for Whole Year
Test&Installation: Engineer Assigned
After-Sale Service: for Whole Using Life
Export Markets: Global
Transport Package: Container, Nude Packs, in Bulk
Specification: ISO9001: 2008
Origin: Shanghai Clirik, China
HS Code: 8474209000
Product Description
Ultra fine powder mill features:
1.325-2500 Mesh (Adjustable).
2. Higher Production Capacity for ultra fine powder
3. Power-saving
4. Stable, Smooth and Reliable Performance
5.99% of the powder can be collected.
6. High quality
7. For any Non-metallic Mineral (Moh’s hardness≤ 6 and moisture≤ 6%)
Ultra fine powder mill introduction:

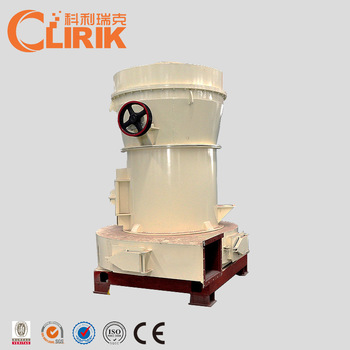

Clirik HGM Series Ultra fine powder mill is widely used for micron powder producing. The output size can reach 2500mesh (5um). It is suitable to grind the material with middle and low hardness, moisture below 6%, and the material should be non-explosive and non-flammable, such as: Calcite, chalk, limestone, dolomite, kaolin, mica, magnetite, vermiculite, meerschaum, gypsum, graphite, fluorite, phosphate ore, potassium ore pumice, etc. The size of the finished product can be adjusted between 325-2500 mesh.
Ultra fine powder mill technical data:
| Model | HGM80 | HGM90 | HGM100 | HGM125 | HGM1680 |
| Ring Diameter(mm) | 800 | 900 | 1000 | 1250 | 1680 |
| Ring Number (PCS) | 3 | 3-4 | 4 | 4 | 4 |
| Roller Number(PCS) | 18-21 | 24-29 | 28-36 | 30-44 | 30-40 |
| Main Shaft Speed (r. p. min) | 230-240 | 200-220 | 180-200 | 135-155 | 120-130 |
| Input Size (mm) | ≤10 | ≤10 | ≤15 | ≤15 | ≤20 |
| Finished Size (um/mesh) |
74-5 (200-2500) |
74-5 (200-2500) |
74-5 (200-2500) |
100-6 (150-2000) |
100-9 (150-1500) |
| Capacity (t/h) | 0.4-4.5 | 0.6-6.5 | 1-9 | 2-16 | 3.8-30 |
| Outlet Size L*W*H (m) | 13.9*4*6.2 | 14.7*4.8*7.2 | 18*4.6*8.6 | 14*9*10.25 | 26.3*7.5*11.9 |
