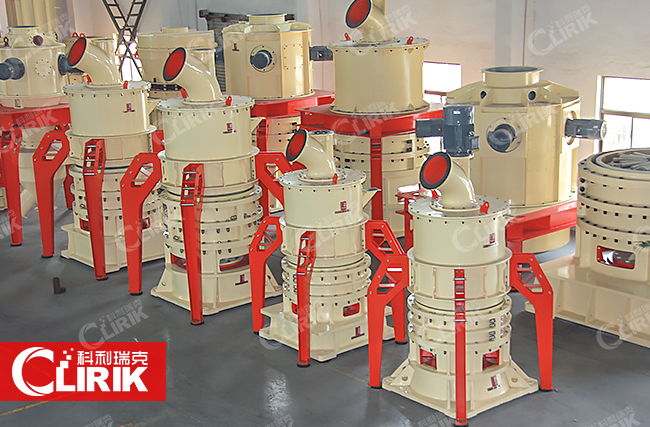

Model: HGM
Name: calcium carbonate ultra fine powder mill
Powder fineness processing ability: can be adjusted between 300-2500 mesh
Capacity: according to your fineness choosen, the powder capacity can be control in the range in 1-45 t/h
Application: calcium carbonate powder ultra fine powder mill, can be used in other different 300 kinds of minerals powder grinding, such as: plaster, calcite, limestone, barite, dolomite, carbon black, marble, gypsum, fluorite, zeolite, mica and other minerals.
Calcium carbonate powder ultra fine powder mill, ultra fine grinding plant advantages
1. high efficiency
2. envirnoment friendly
3. energy saving
4. factory price, cheaper than other brand
5. high fineness, can be adjusted between 300-2500 mesh
6. long term service life
7. warm after sales service
Calcium carbonate powder ultra fine powder mill, ultra fine grinding plant working principle
When the calcium carbonate ultra fine powder mill machine is at work, all the grinding rollers are rolling in the ring, and the materials are driven to the edge of the turnplate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers.
After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, edge of then evenly sent to the upper distribution plate of the turnplate by vibrating feeder and sloping feeding pipe. The high-pressure air blower constantly inhales air within the ultra fine powder machine and, in turn, the air flow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall an exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags. At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve. The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed. In addition, filtered clean air will be emitted from the air outlet of muffler in the end.
Calcium carbonate powder ultra fine powder mill, ultra fine grinding plant parameter
| Model | HGM80 | HGM90 | HGM100 | HGM100A | HGM125 | HGM1680 |
| Ring Diameter(mm) | 800 | 930 | 1035 | 1035 | 1300 | 1680 |
| Ring Number(layer) | 3 | 3-4 | 3 | 4 | 4 | 4 |
| Roller Number(piece) | 21 | 24-32 | 27 | 34-36 | 40-44 | 30-40 |
| Main Shaft Speed(r.p.m.) | 230-240 | 200-220 | 180-200 | 180-200 | 135-155 | 120-130 |
| Input Size(mm) | ≤20 | ≤20 | ≤20 | ≤20 | ≤20 | ≤20 |
| Finished Size(μm/mesh) | 5-47 | 5-47 | 5-47 | 5-47 | 5-47 | 100-9 |
| （325-2500） | （325-2500） | （325-2500） | （325-2500） | （325-2500） | （150-1500） | |
| Capacity(t/h) | 0.5-4.5 | 0.6-6.5 | 0.7-7 | 0.8-8.5 | 0.9-12 | 3.8-30 |
| Overall Dimension(L*W*H, m) | 13.9x4x6.2 | 14.7x4.8x7.2 | 18x4.6x8.6 | 18x4.6x8.6 | 14x9x10.25 | 26.3*7.5*11.9 |
| Motor Power(KW) | 145-165 | 175-192 | 263 | 263 | 378-408 | 550-610 |
